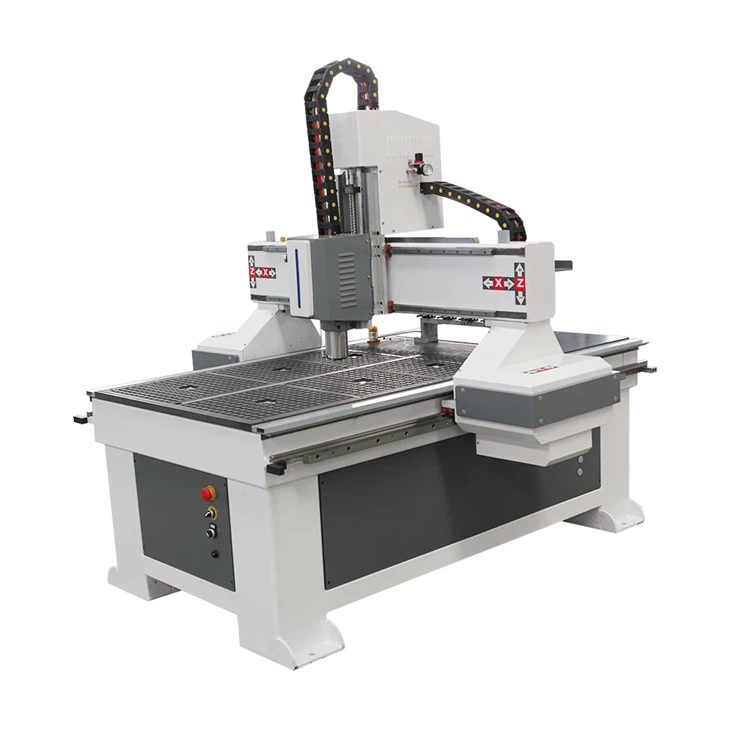

900*1200mm ATC Wood Cnc Router Machine

1. Z-axis height 300mm (height can be increased to 350mm).
2. Steel tube welded frame design, sturdy enough.
3. The 900*1200mm ATC Wood Cnc Router Machine  with vacuum working table.
4. X-axis, Y-axis, Z-axis are all TBI ball screw transmission.
5.  Adopt high-quality Taiwan High precision linear guides.
6. Stepper motor and Yako driver (optional servo motor and driver).
7. Water cooled spindle and Folinn inverter(high power spindle optional).
8. DSP B57 control system(optional LNC or Mach 3) .

Product Parameter

Optional product accessories
1. Rotary axis: It can realize rotary engraving, mainly used for processing cylindrical materials.
2. Air-cooled spindle or high-power water-cooled spindle: The air-cooled spindle has a simple structure and is cheap. The 3.2KW water-cooled spindle is cooled by water circulation, with low noise and high power.
3. Servo motor: Using servo motor can increase the 900*1200mm ATC Wood Cnc Router Machine  processing speed and accuracy, and the stability of the machine is better.

Working samples

The 900*1200mm ATC Wood Cnc Router Machine machine can process wood,pvc,acrylic,plywood,MDF,foam,plastic etc.
1. Furniture industry: cabinets, doors, beds, tables, chairs, kitchen counters, etc
2. Musical instrument industry: such as piano, guitar, violin, etc
3. Advertising industry: various materials such as advertising signs, logo production, acrylic cutting, vacuum molding, etc
4. Craft gift industry: 3D carving, relief and other craft gifts

Product Description

2.2KW Water cooling spindle

The water-cooled spindle through water circulation cools, with fast cooling speed and low spindle noise when processing.

Vacuum working table

The work table can be controlled in different areas, making operation easier.

Lubricator

The Small Cnc Router Table machine oil lubricator is push-operated, simple to operate and easy to maintain.

Cast iron bed

It adopts cast iron frame structure, which is stable and not easy to deform.

TBI ball screw

Adopt TBI ball screw drive, high processing precision.

Carve tools

Choose different tools according to processing requirements

Fuling inverter

Different spindle speeds can be adjusted according to processing requirements.

Yako driver

The electrical components are placed under the machine to save space.

Tool sensor

Monitor the status of tools to ensure machining accuracy and speed.

Product process

Our company was established in 2011, the factory has 14 years production experience, our product quality is very good, accessories quality and assembly process have strict requirements, our products have been sold to more than 80 countries and cities around the world.

Our factory

Our customers

Our customers give us very good feedback, our after-sales service and product quality are very good, this is just part of our feedback display. Please believe us, we are a professional manufacturer and seller CNC router.

FAQ

Q: Training and use of the product?
A: We can provide online training, including how to use the product and precautions.
Q: How about warranty and after-sales service?
A: Two-year warranty for the whole machine, 1 year for wearing parts.
Q: Payment terms?
A: T/T, LC and Alibaba Trade Assurance payment methods are acceptable. Other payment methods are negotiated according to the cooperation time.
Q: Delivery time?
A: Regular products take 7-15 days, customized products take 15-30 days, which needs to be negotiated.
Q: Accept OEM/ODM?
A: Yes. We provide ODM/OEM.
