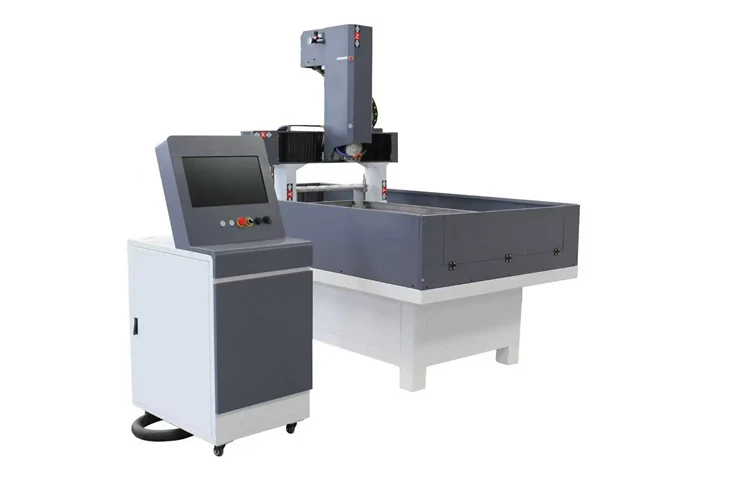

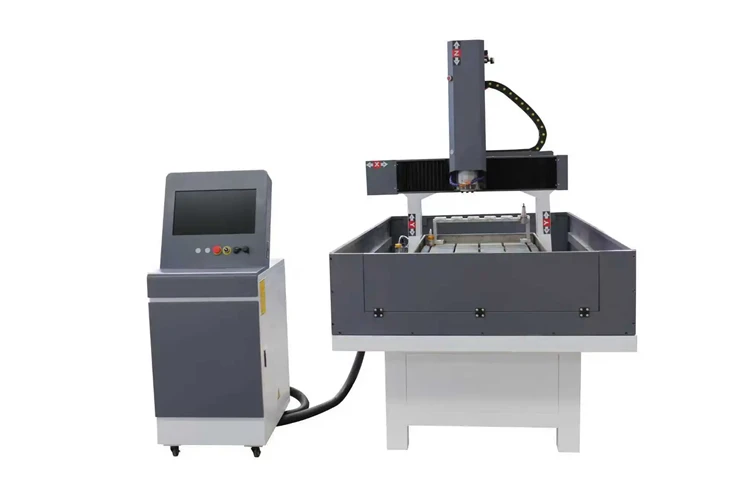

9012 Small ATC Cnc Router Machine For Metal
5.5KW ATC water cooling spindle with ATC
1500w Yako servo motor
LNC control system
BEST inverter
coast iron table
water tank
Optional accessories
6090 Small ATC Cnc Router Machine For Metal
1. 6090 Small ATC Cnc Router Machine For Metal use stepper motor or servo motor, for customers with high processing requirements. Servo motors have higher processing accuracy and speed than stepper motors, but the price is also relatively high.
2. 6090 Small ATC Cnc Router Machine For Metal can replace 2.2KW or 3.2KW water-cooled spindle, high-power spindle has strong power and can cut thicker materials
3. A rotating axis can be added to engrave materials with special shapes, and the 3D engraving effect is also better.
|
Description |
Parameter |
|
|
1 |
XYZ working area |
600*900*300mm |
|
2 |
Table size |
640*940mm |
|
3 |
XYZ travel positioning accuracy |
±0.01mm |
|
4 |
XYZ repositioning positioning accury |
±0.01mm |
|
5 |
Gantry |
cast-aluminium |
|
6 |
lathe structure |
casting iron |
|
7 |
Drive system X-Y axis |
Ball screw |
|
8 |
Drive system Z axis |
Ball screw |
|
9 |
Spindle power |
5.5 KW |
|
10 |
Max velocity |
8m/min |
|
11 |
Max working speed |
6m/min |
|
12 |
Spindle speed |
0-24000rmp |
|
13 |
Work mode |
Yako servo motor |
|
14 |
Working voltage |
AC220V |
|
15 |
Command language |
G code |
|
16 |
Interface |
USB or parallel port |
|
17 |
Operating system |
LNC control system |
|
18 |
Flash memory |
128 |
|
19 |
X-Y resolution |
﹤0.025mm |
|
20 |
Software environment |
Wentai type3 artcam |
|
21 |
Running environment |
Temperature:0-45℃ |
