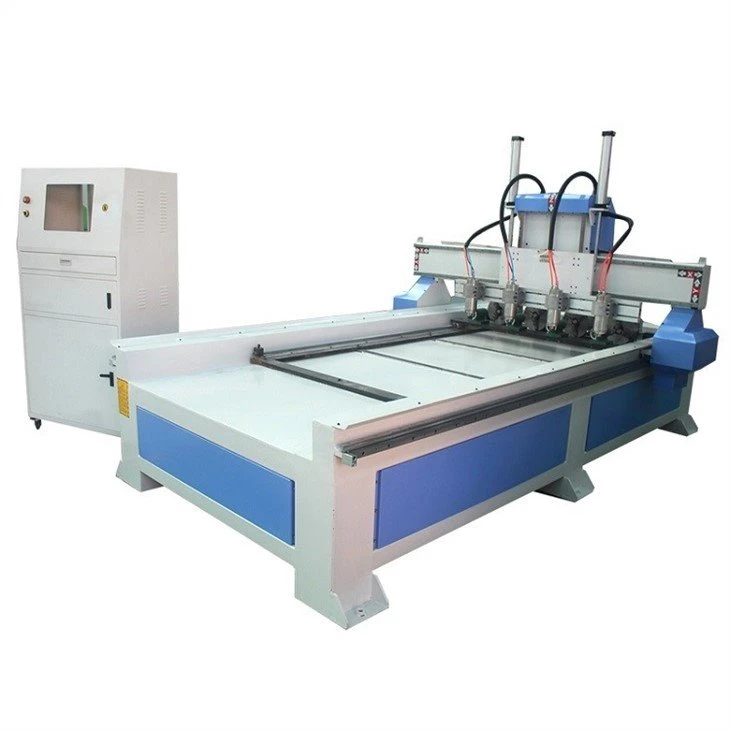

3D Wood Router
Description：
Our 3D Wood Router is an electric tool used to cut straight or decorative profile grooves and lines on the edge or surface of wood. It has a wide range of applications, used for carving furniture, staircases, Buddha statues, handicrafts and other three-dimensional workpiece, and can be used for carving complex plane relief. At the same time, it can be used together with professional technicians to carry out complex design and processing, including rough machining and finishing, which will bring you exquisite carving effect.
Characteristic:
This 3D Wood Router adopts a compact structure design, whose compact appearance integrates transmission system, nut, gear, spindle, machine tool control system, driver and other components, which is very convenient for size and transportation. At the same time, it adopts the design of four main shafts and four rotating shafts, the diameter of the processed cylinder can be increased to 500 mm, and the length can reach 2400 mm. 3D Wood Router can carry out fine carving, cutting and milling operations. In addition, it has a rotating device for carving the cylinder workpiece, which can well fix the workpiece during processing to prevent displacement or slipping, so as to effectively improve the carving efficiency.
Performance Parameter:
Description | Parameter |
XYZ working area | 1200*1800*300mm or 1300*2500*200mm |
Rotary Max.Diameer | 300mm |
Rotary Max.Length | 1800mm |
Resolution | 0.03mm |
Table size | 1450*2000mm |
Lathe Structure | Seamless welded steel structure |
X,Y Structure | Rack and pinion transmission, Hiwin square guide rail |
Z Structure | Germany rolling ball screw, Hiwin square guide rail |
Max. Idling Speed | 35m/min |
Single Spindle Power | 2.2 KW water cooling spindle |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Working Voltage | AC380V/50Hz |
Working Mode | stepper (servo) |
Command | G code (HPGL, U00, mmg, plt) |
Operating System | NC Studio control |
Diameter of cutter | φ3.175-φ12.7mm |
Dust-collect Function | Yes |
Work-holding | By clamp |
Software | Type 3, ArtCam |
Packing size | 3900mm*2280mm*2260mm |
Net Weight | 1800KG |
Machine Parts:
Working Samples:
FAQ:
Q1. What is the producing time after order?
About 10-20 days depend on different machines.
Q2. How about your after-sales service?
We provide 24-hour online service. You can contact us by phone, email, WhatsApp, etc.
Q3. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery
