4 axis stone cnc machine
Table surface：Aluminum T slot +PVC
Spindle power：5.5KW water cooled spindle
Motor and driver:Servo motor and drviers
Operating system:LNC/SYNTEC system
Characteristic:
1. High precision: The 4 axis stone cnc machine with servo motor are used to ensure high carving accuracy and accurate repeated positioning.
2. Multifunctional: This 4 axis stone cnc machine has automatic tool changing and swing 180 degrees ,5.5kw water coolde spindle, allowing for various carving methods such as flat carving, 3d carving, and relief carving.
3. High speed and efficiency: The high-performance spindle motor enables fast cutting and engraving, improving production efficiency.
4. Easy to operate: The control system is simple to operate, and users can operate it through simple design drawings or text instructions.
5. Strong stability: The structure is stable, and long-term operation is not prone to mechanical fatigue and accuracy degradation.
6. Strong adaptability: Suitable for stones of different hardness and types, such as marble, granite, sandstone, etc.
Performance Parameter:
| Description | Parameter |
| XYZ working area | 1300*2500*300mm |
| Table size | 1810*3000mm |
| XYZ travel positioning accuracy | ±0.03mm |
| XYZ repositioning positioning accury | ±0.02mm |
| Table surface | Aluminum T slot +PVC |
| Drive system X-Y axis | Rack |
| Drive system Z axis | Ball screw |
| Spindle power | 5.5KW |
| Max velocity | 50m/min |
| Max working speed | 25m/min |
| Spindle speed | 0-24000rmp |
| Motor and driver | Servo motor and drviers |
| Working voltage | AC220/380V |
| Operating system | LNC/SYNTEC system |
| Net weight | 1500kg |
| Gross weight | 1600kg |
Detail photos:
|
|
The 4 axis stone cnc machine with 5.5KW automatic tool changing water-cooled spindle, which can swing 180 degrees and perform flat carving, relief carving, and 3D carving. |
|
|
The automatic tool changing system is equipped with 12 tools, which are controlled by CNC system to achieve fast and reliable tool changing |
|
|
High stability servo drive and motor, high precision, fast processing speed, smooth operation, and low noise. |
|
|
The whole machine is dust-proof, ensuring safe and stable operation, and extending its service life |
|
|
Adopting imported linear square gauges, with reliable accuracy; The rack adopts precision rack |
|
|
Our factory's self-designed stainless steel sink |
|
|
Digital automatic lubrication system for lubricat guide easily. |
|
|
The control box is equipped with a built-in exhaust fan, and the wires are made of sheathed high flexibility shielded cables, which are anti-interference and anti-static |

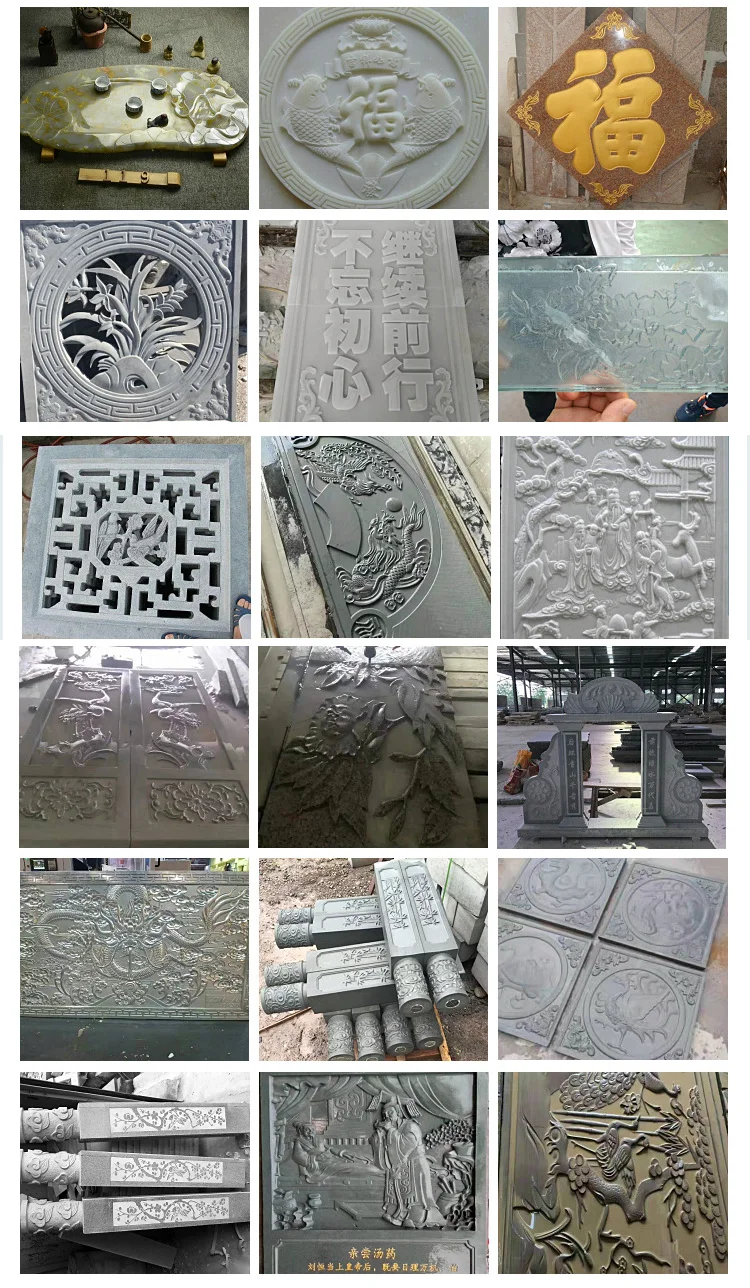

Working Sample:
The application industry of 4 axis stone cnc machine
1. Tombstone carving: used to burn text, patterns, commemorative walls, etc. on tombstones.
2. Architectural decoration: Produce interior and exterior decorative materials for buildings, such as cultural stones, background walls, etc.
3. Urban Sculpture: Create urban landscape sculptures and various art sculptures.
What we can offer?
1. Issues related to the use, maintenance, and upkeep of the product.
2. Technical support: Provide technical support related to the use of the product.
3. Maintenance guidance: Provide customers with after-sales maintenance services for products, including replacement of spare parts, repairs, etc.
4. Online training: Provide customers with training on the use of the product, enabling them to better understand its features
Characteristics and usage methods.
