ATC CNC Router 2030



Main features

ATC CNC router 2030
1.9KW ATC HSD aircooling spindle, speed 0-24000rpm, Place tools on the spindle to mill, carve, and drill materials.

2. Taiwan LNC control system, easy to operate.Support intelligent file checking function.

3.The X-Y-Z axis adapt HIWIN guide rail ,High-quality guide rails and racks can improve the ATC CNC router 2030 machine working speed and stability .

4.Lubrication system, maintenance free, easy to operate.

5.Vacuum table ,Independent control of each partition ,easy to fix materials of different sizes.

6.ATC CNC router 2030 USE Yako servo motor 1500W

Specification parameters

.	Discription	Parameter
1	X,Y,Z Working Area	2100*3000*300mm
2	Table Size	2440*3540mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Positioning Accuracy	±0.02mm
5	Lathe Structure	Welded Strucutre
6	X, Y Structure	Gear Wheel Transmission, Shaft Linear Bearings
7	Z Structure	Ball Screw, Shaft Linear Bearings
8	Max.Consume power	20KW
9	Max.Speed	0-60000mm/min
10	Max.Working Speed	0-25000mm/min
11	Spindle Power Motor	9KW air cooling Spindle ATC
12	Spindle Speed	0-24000RPM
13	Working Mode	Servo system
14	Working Voltage	AC 220V/380V/50/60Hz , 3PH
15	Command	G Code, *uoo, *mmg, *plt
16	Operating System	Weihong or SYNTEC System or LNC control system
17	Interface	Internet line
18	Flash Memory	512M
19	Collet	ER32
20	X,Y Working Delicacy	<0.01mm
21	Software	Type3 software, Wentai software,Artcam software
22	Running circumstance	Temperature: 0℃～45℃, Relative humidity: 30%～75%
23	Packing Size	4600*2250*2200 mm
24	Net Weight	1500KG
25	Gross Weight	1800KG

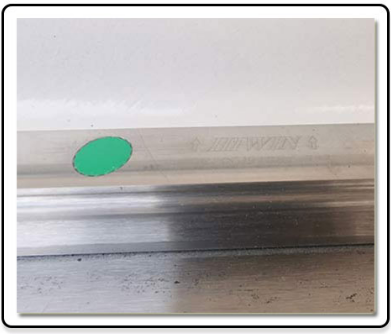

Bed was milled by 5 axis CNC central machine, make sure the machine with high precision	High quality guide Hiwin brand,make sure with high accuracy	With linear type ATC 12 pcs

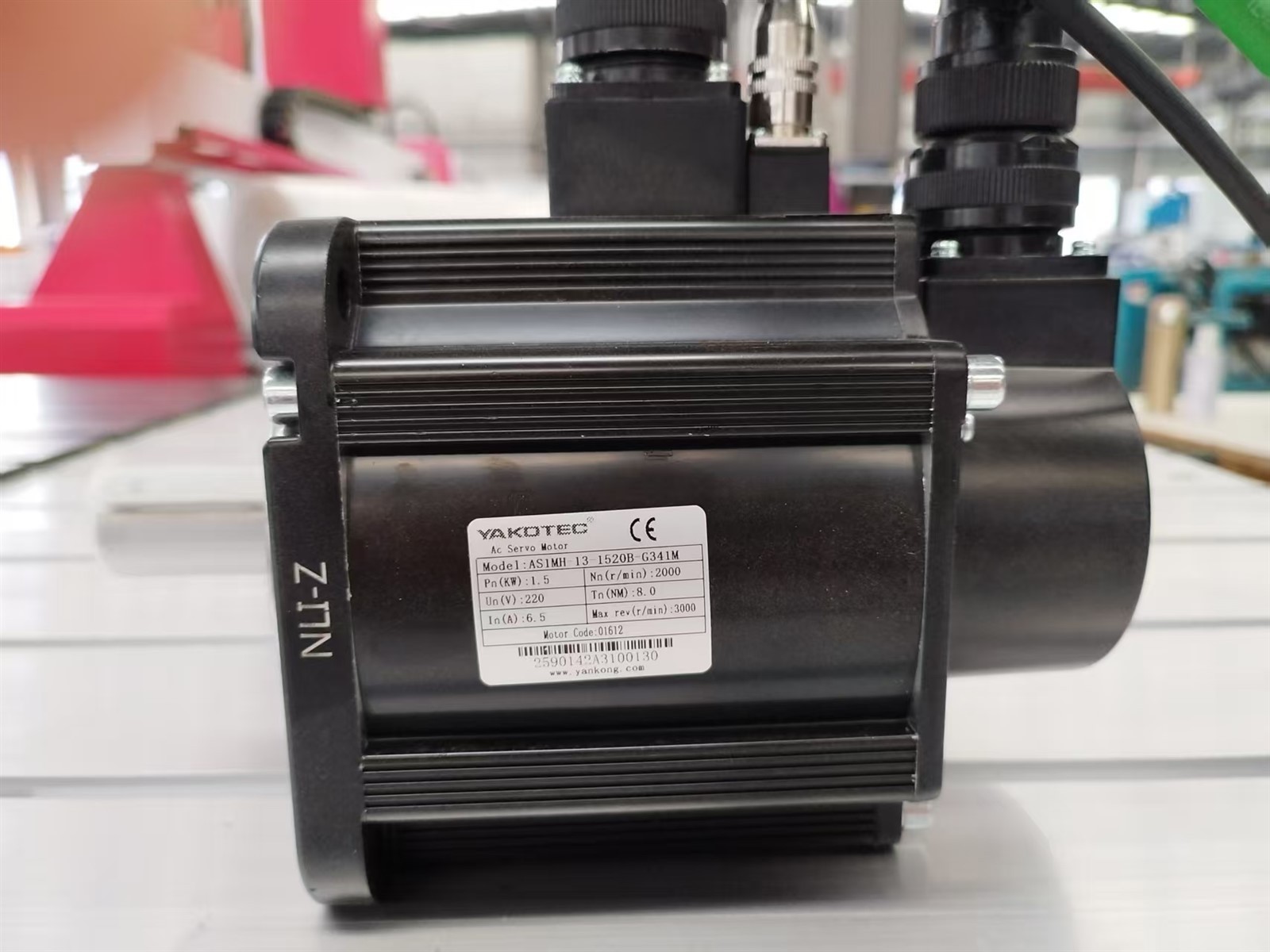

Yako servo motor 1500W	LNC control system	9KW air cooling spindle with AT

ATC CNC router 2030 Application :
Advertising industry: acrylic, two-color board, PVC, ABS board, aluminum board, billboards, various signs, copper, fonts, various logos, etc.
Woodworking industry: furniture decoration, musical instrument manufacturing, wooden crafts, art models, art murals, cabinet windows and doors, decorative processing, and cutting of three-dimensional surfaces and shapes of various wooden industrial products.
