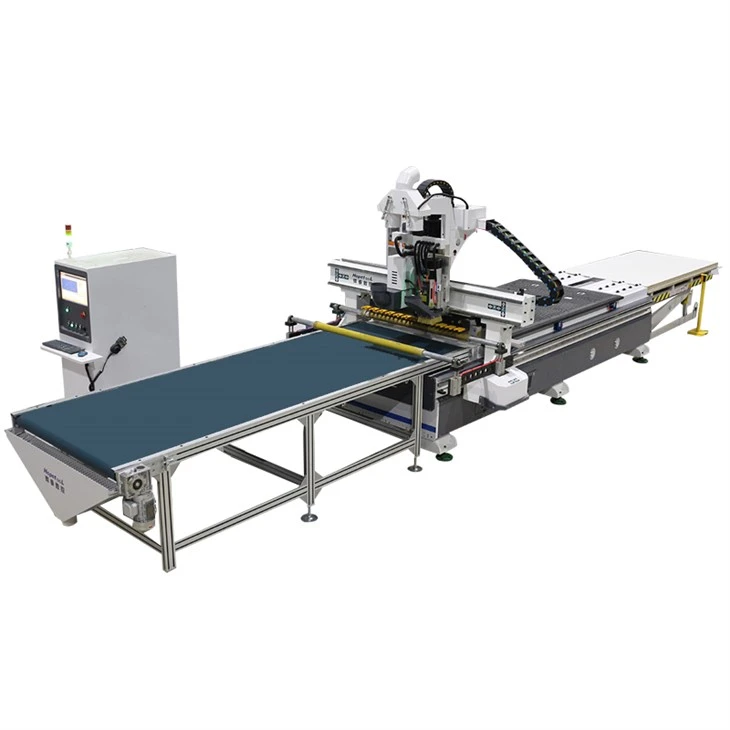

Automatic Loading And Unloading Engraving Machine
Characteristic：
1. High degree of automation: automatic loading and unloading engraving machine equipment automatically complete the entire process of engraving processing, compared with the traditional manual engraving method, saving a lot of manpower and time, improve production efficiency.
2. High engraving precision: automatic loading and unloading engraving machine uses digital control system to control the movement of the machine, high engraving precision, engraving image clear, smooth, smooth surface, no distortion.
3. Suitable for many industries: automatic loading and unloading engraving machine can be widely used in all walks of life, such as advertising, furniture, mold, shoemaking, packaging, printing, construction and other industries.
4. Simple and convenient operation: Woodworking production line using digital control system, its operation is simple, humanized, only a small number of operators can complete the operation and control of the machine, reduce the burden of the operator, improve work efficiency.
5. High productivity: high productivity of Woodworking production line, which can achieve 24-hour uninterrupted production, thereby improving product productivity and work efficiency, and improving the production efficiency of enterprises.
|
Description
|
parameter
|
||
|
XYZ working area
|
1300*2500*200mm
|
1500*3000*200mm
|
2000*3000*200mm
|
|
Table size
|
1440X3040mm
|
1640*3540mm
|
2140*3540mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
||
|
X,Y,Z Repositioning Positioning Accuracy
|
±0.01mm
|
||
|
Lathe Structure
|
Welded Strucutre
|
||
|
X, Y Structure
|
Gear Wheel Transmission, Shaft Linear Bearings
|
||
|
Z Structure
|
Ball Screw, Shaft Linear Bearings
|
||
|
Max.Consume Power
|
20KW
|
||
|
Max.Speed
|
0-60000mm/min
|
||
|
Max.Working Speed
|
0-25000mm/min
|
||
|
Spindle Power Motor
|
9KW ATC spindle
|
||
|
Spindle Speed
|
0-24000RPM
|
||
|
Working Mode
|
Servo system
|
||
|
Working Voltage
|
AC380V/50/60Hz , 3PH
|
||
|
Command
|
G Code, *uoo, *mmg, *plt
|
||
|
Operating System
|
SYNTEC or Weihong System
|
||
|
Interface
|
Internet line
|
||
|
Flash Memory
|
512M
|
||
|
Collet
|
ER32
|
||
|
X,Y Working Delicacy
|
<0.01mm
|
||
|
Software
|
Type3 software, Wentai software,Artcam software
|
||
|
Running circumstance
|
Temperature: 0°C~45°C,
Relative humidity: 30%~75%
|
||
|
Packing Size
|
4000x2150x2200 mm
|
||
|
Net Weight
|
2000KG
|
||
|
Gross Weight
|
2300KG
|
||
