1325 atc cnc router machine
Heavy steel welded structure
Taiwan TBI Ballscrew transmission for Z axis
Hiwin square linear guide

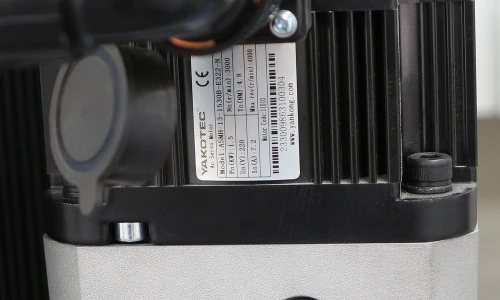

Yako servo motor 1.5KW
Folinn inverter
Vacuum table with T slot+ Vacuum pump 5.5KW
9 Kw JST or HQD ATC air cooled spindle
Linear automatic tools changer 8 tools
The 1325 atc cnc router machine is the most commonly used engraving machine model. The maximum processing size is 250 cm long and 130 cm wide, and the work table area can be customized according to customer requirements. It is mainly suitable for furniture, advertising, decoration and other industries.
Detail photos

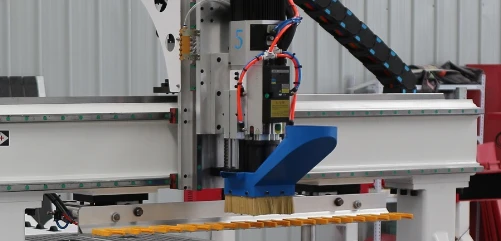

1,The 1325 atc cnc router machine is equipped with automatic tool change system, equipped with 10 tools, and can choose from 12 tools, 8 tools, 6 tools, etc.
2,The well-known 9 Kw JST or HQD ATC air-cooled spindle has strong cutting ability, low noise, and long working time.

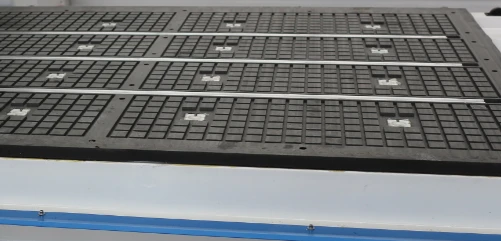

1,The 1325 atc cnc router machine with vacuum table, which is divided into 6 areas and can strongly adsorb non-metallic materials of different areas. It can be processed in a single area or simultaneously.
2,The machine lathe is welded from thick walled square tubes to ensure long-term stable and high-speed operation.
3,The 1325 atc cnc router machine with positioning column, which can locate the material to be processed.
Main parts
Performance parameter:
| NO. | Discription | Parameter |
| 1 | X,Y,Z Working Area | 1300X2500X300mm/1500X30000X300mm/2000X3000x300mm |
| 2 | Table Size | 1440X3040mm/1640x3040mm/2140x3040mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Positioning Accuracy | ±0.025mm |
| 5 | Lathe Structure | Welded Strucutre |
| 6 | X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
| 7 | Z Structure | Ball Screw, Shaft Linear Bearings |
| 8 | Max.Consume power | 20KW |
| 9 | Max.Speed | 0-60000mm/min |
| 10 | Max.Working Speed | 0-25000mm/min |
| 11 | Spindle Power Motor | 6/9KW HSD Spindle ATC or Chinese spindle |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Working Mode | Servo system |
| 14 | Working Voltage | AC380V/50/60Hz , 3PH |
| 15 | Command | G Code, *uoo, *mmg, *plt |

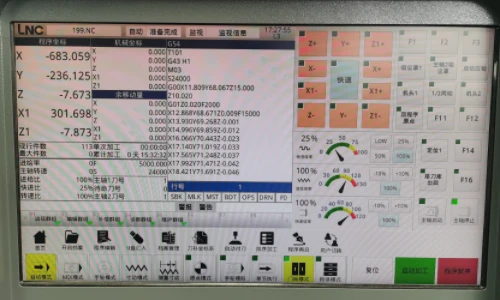

| 16 | Operating System | LNC/SYNTEC System |
| 17 | Interface | Internet line |
| 18 | Flash Memory | 512M |
| 19 | Collet | ER32 |
| 20 | X,Y Working Delicacy | <0.01mm |
| 21 | Software | Type3 software, Wentai software,Artcam software |
| 22 | Running circumstance | Temperature: 0°C~45°C, Relative humidity: 30%~75% |
| 23 | Packing Size | 4000x2150x2200 mm |
| 24 | Net Weight | 2000KG |
| 25 | Gross Weight | 2300KG |
1325 atc cnc router machine are suitable for carving and processing non-metallic materials such as panel furniture, advertising decoration, and construction projects, as well as non-ferrous metals such as copper and aluminum.
Our factory
Our factory provides high-quality 1325 atc cnc router machine, with strict management standards from parts procurement to processing procedures. Our machine must be tested before leaving the factory, then packaged and shipped after passing the test. In addition, we will track the entire transportation process of the goods to ensure that the machine arrives smoothly at the customer's home. Our after-sales team is also participated by our technicians to ensure that customers can use the machine proficiently
