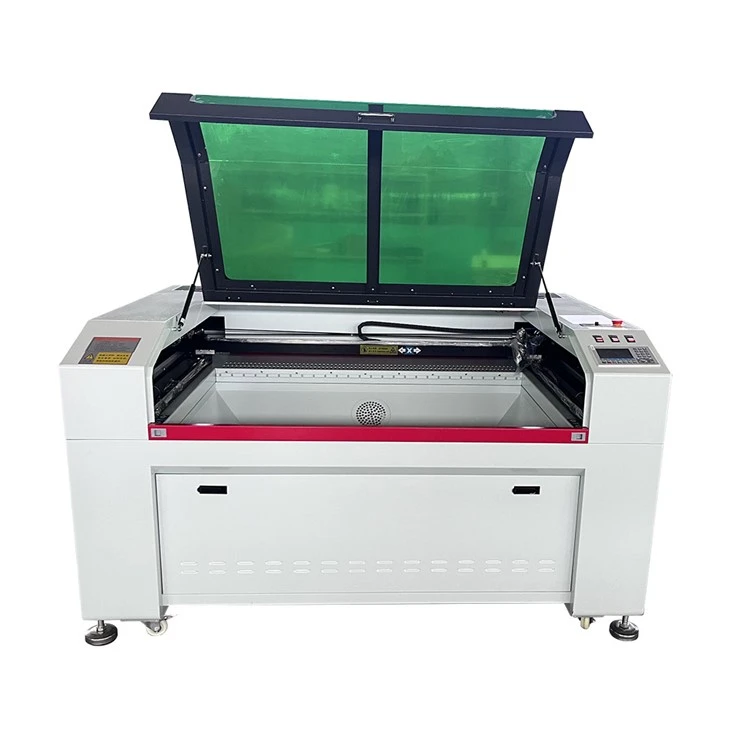

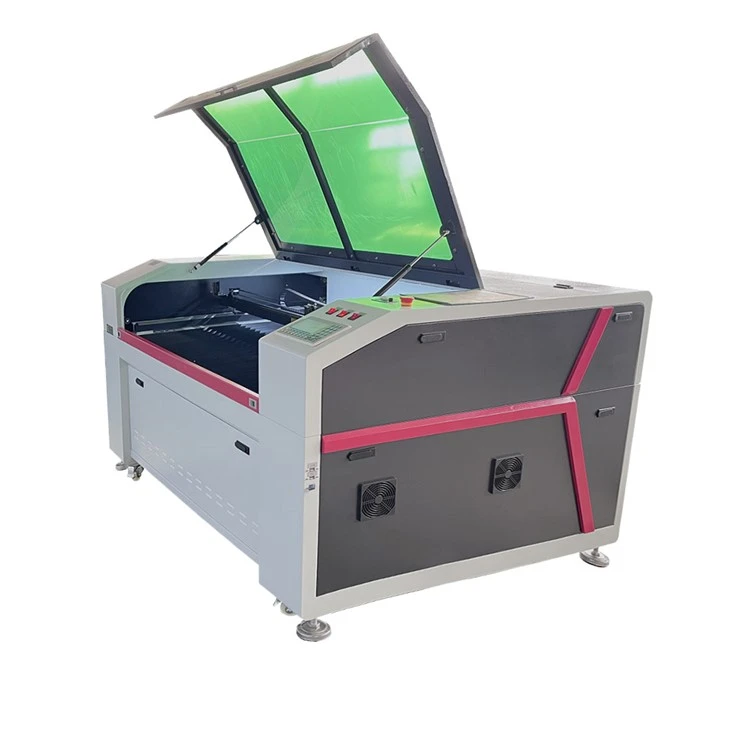

Laser Cutting Machine Co2
#.Yongli 80W laser tube
#.Water chiller CW5000
#.Ruida RDC6445G control system
#.Leadshine stepper motor and driver
#.Taiwan square linear guide
#.Honeycomb table or blade table
Feature :
The laser cutting machine co2 has different working areas and laser power options of 60-200W. The worktable includes a blade table and a honeycomb table, which can cut and engrave various non-metallic materials such as acrylic, wood, fabric, leather, rubber sheet, PVC, paper, etc
Application :
The laser cutting machine co2 Widely used in industries such as clothing, footwear, luggage, computer embroidery cutting, modeling, electronic appliances, toys, furniture, advertising decoration, packaging printing, paper products, handicrafts, household appliances, laser processing, etc.
Details of the 6090 laser cutting machine co2:
Specification:
|
Model |
6090 laser cutting machine co2 |
|
Worktable |
Honeycomb / Aluminum knife |
|
Eneraving area |
600*900mm |
|
Laser Power |
60W/80W/100W/130W/150W |
|
Engraving Speed |
600mm/s Max |
|
Engraving Depth |
5mm |
|
Cutting Speed |
500mm/s |
|
Cutting Depth (Acrylic) |
0-15mm (acrylic) |
|
Resolution Ratio |
0.0254mm (1000dpi) |
|
Power Supply |
220V(or110V)+/-10% 50Hz |
|
Resetting Positioning |
Accuracy less than or equal to 0.01mm |
|
Water protecting sensor and alarm |
Yes |
|
Operating Temperature |
0-45℃ |
|
Operating Humidity |
35-70℃ |
|
Graphic Format Supported |
PLT/DXF/BMP/JPG/GIF/PGN/TIF |
|
Control system |
Ruida |
|
Water Cooling(Yes/No) |
Yes |
|
Laser Tube |
Sealed CO2 glass laser tube |
