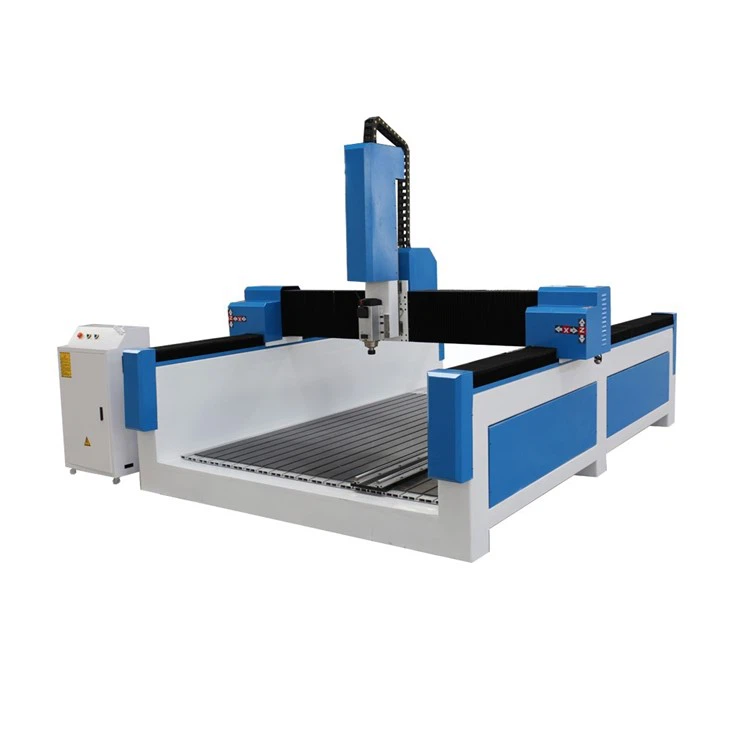

2030 Foam CNC Router Machine

Description	parameter
	XYZ working area	1500*3000*500mm
	Table size	1810*3400mm
	XYZ travel positioning accuracy	±0.025mm
	XYZ repositioning positioning accury	±0.025mm
	Table surface	Aluminum molding+PVC table
	gantry	steel
	drive system X-Y axis	Rack actuation
	drive system Z axis	Ball screw
	Spindle power	5.5KW
	Max velocity	50m/min
	Max working speed	25m/min
	Spindle speed	0-24000rmp
	work mode	Yako servo motor 1500w
	Working voltage	AC220V or 380V
	Command language	G code
	Interface	USB
	Operating system	Syntec control system
	Flash memory	128
	X-Y resolution	﹤0.025mm
	Software environment	Wentai type3 artcam
	Running environment	Temperature:0-45℃

 2030 ATC CNC router machine

Training and use

1. We will supply with the machine operation manual in English version for installing and operation.



2.Customer can come to our factory training .



3.Our engineer also can go to customers' factory training.





2030 ATC CNC router machine

Waranty and After service



1. Our warranty is 2 years counting from the date when the Machine arrives at the port of destination.



2. We will supply after service 24 hours,customer can contact us any time.



3.When some problems can't be solved by customers, our engineer can go to door to help.

2030 ATC CNC router machine
