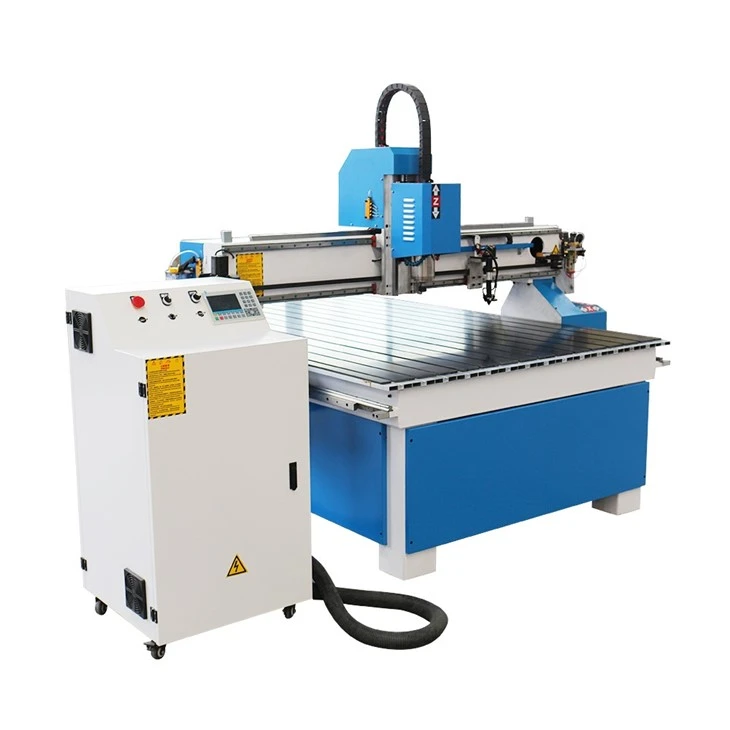

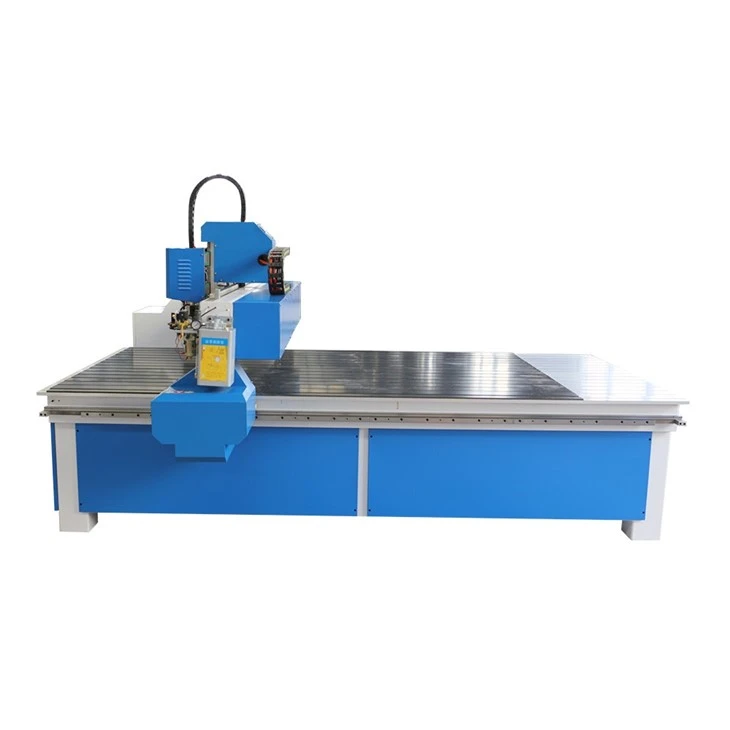

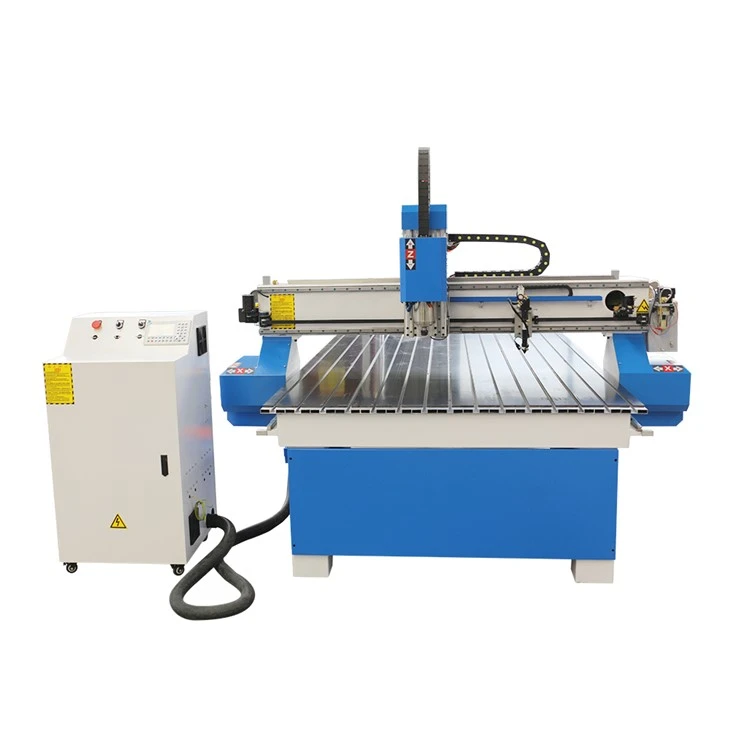

Laser Engraver And Cnc Router

The laser engraver and cnc router all-in-one machine has mutifunctions , engraving and cutting various materials. The machine equipped a 3.2KW high-power water-cooled spindle and an efficient laser head. It can process metal and non-metal materials.





1. The machine equipped 3.2kw water-cooled spindle and co2 laser head, It has both cnc router and laser engraving functions.

2. The square tube welding structure makes the bed not easy to deform and has long service life.

3. The Weihong CNC system controls the water-cooled spindle, and the Ruida CNC system control laser head. Both control software support CAD/CAM format software.

4. High-speed stepper motors and drivers ensure that the machine can work at high speed and stably.

5. The X-Y-Z axis uses high-quality square rails ,ensure the machine can work stably.

6. Laser engraver and cnc router can cutting, slotting, punching, flat engraving, 3D engraving, relief and other processing.









Lathe bed and working table

Steel pipe welding structure and specially reinforced gantry, so the overall structure is stable.
The aluminum work table with PVC strips prevents scratches and damage to tools.





Spindle and laser head
The laser engraver and cnc router use 3.2kw water-cooled spindle, which can engrave and cut almost all materials, and it cools down quickly ,so it has long working time.
The co2 laser head can engrave and cut non-metal materials, and use Reci laser tube, which has a high laser utilization rate.





Control system
This machine has two systems:
1. Weihong control system that control the water-cooled spindle, supports software that can output G codes, and is computer controlled.
2. Ruida control system controls the laser head engraving and cutting, LCD button operation, and supports USB input.





The laser engraver and cnc router all-in-one machine has mutifunctions , engraving and cutting almost materials. The machine equipped 3.2KW high-power water-cooled spindle and an efficient co2 laser head. It can process metal and non-metal materials.





The production process  is very strict, and we take each machine very seriously. The machine will be packaged and shipped only after it has passed the inspection.



Q: What is your minimum order quantity?
A: Our minimum order quantity is 1 set.

Q: Do you accept OEM/ODM?
A: Yes, we can make the machine according to your special requirements.

Q: When is your delivery time?
A: Our delivery time is 20 days.

Q: Do you have good after-sales service?
A: Yes, our after-sales service is 24*7.

Q: Payment terms?
A: T/T, LC and Alibaba Trade Assurance payment methods are acceptable. Other payment methods are negotiated according to the cooperation time.


Q: How should I pay for my order?
A: You need to pay 30% as advance payment first, then we start production. When the machine is finished, we will send you the pictures or videos, and then you need to pay the balance. After we receive your full payment, we will ship to you.
