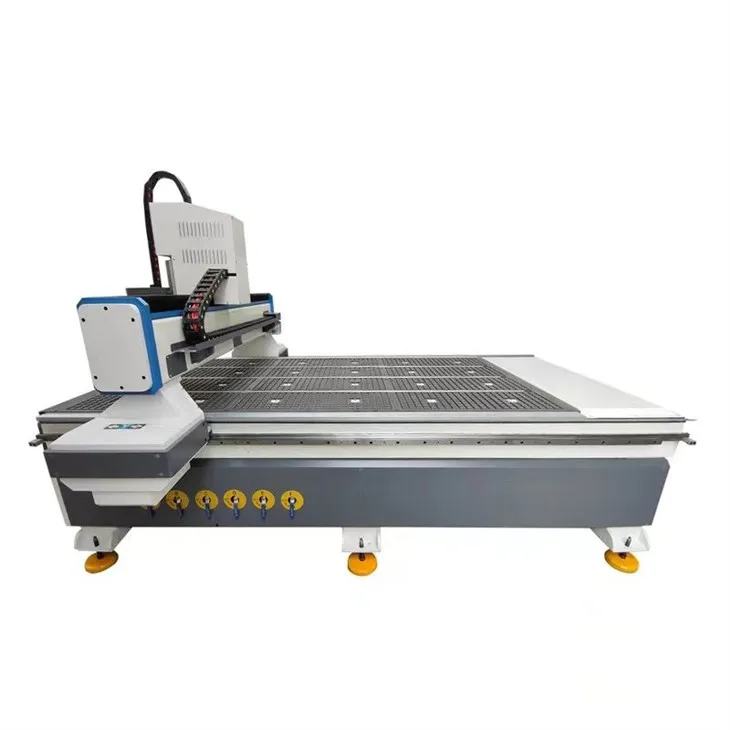

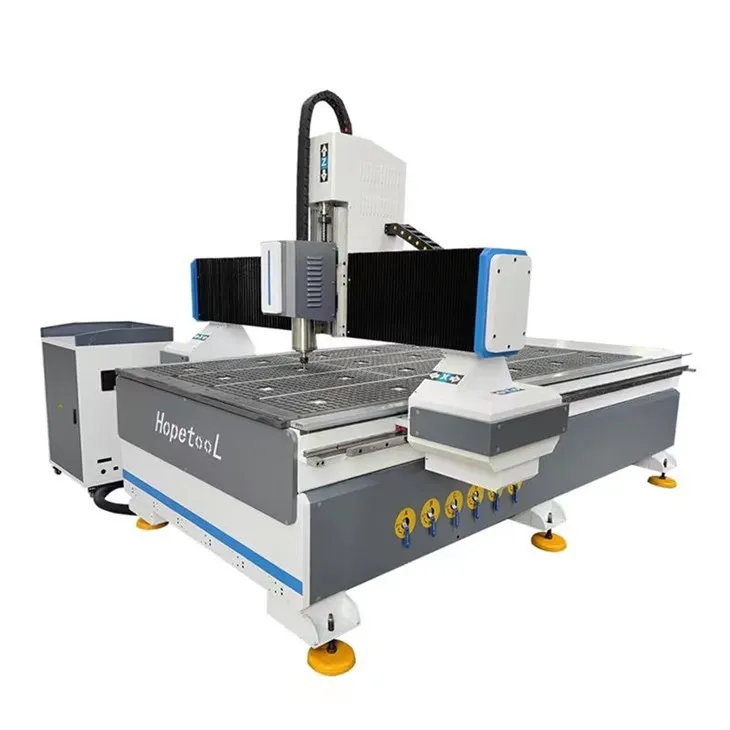

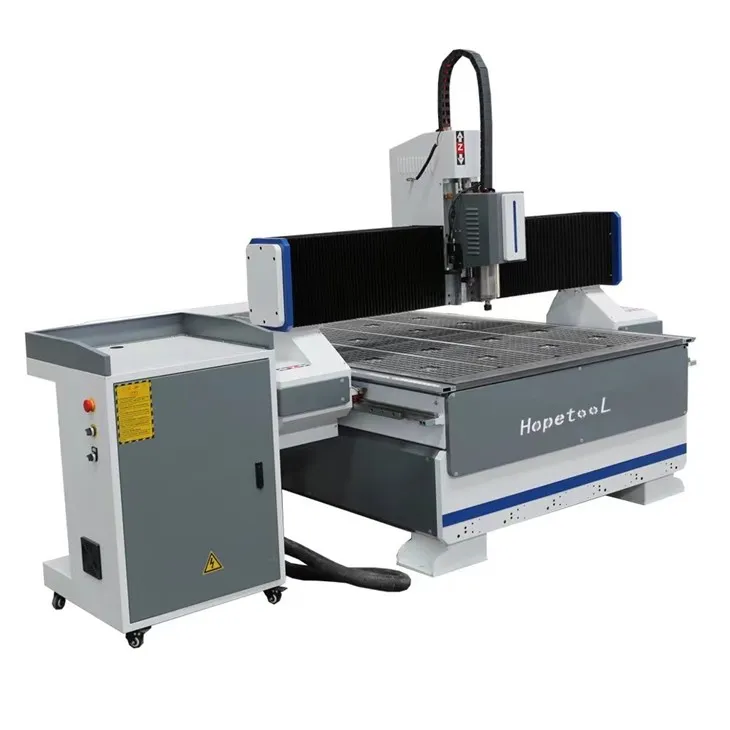

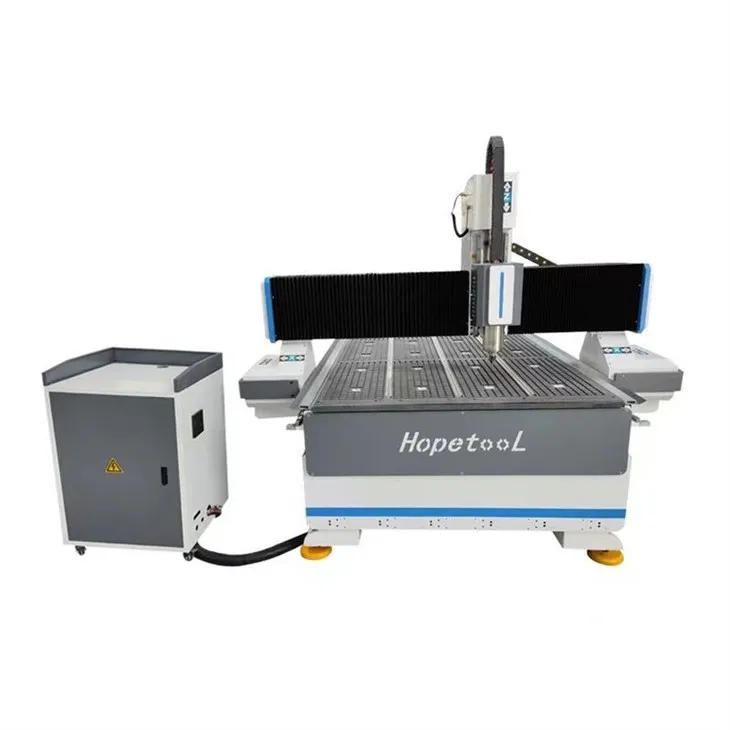

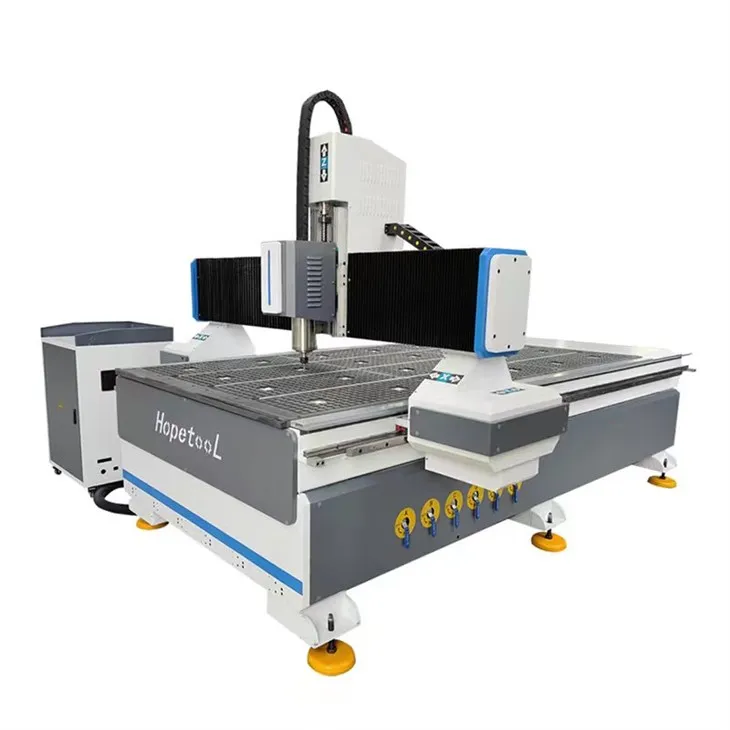

1325 CNC Router Machine Cut Wood

1325 CNC router machine cut wood Cutting materials with cutting tools, including cnc wood router machine, stone engraving machines, metal engraving machines, etc. Suitable cutting tools and engraving parameters can be selected according to different materials and processing requirements



Main configuration of the1325 CNC router machine cut wood
The working area is 1300 × 2500mm.
The accuracy error is 0.01mm.
The max operating speed is greater than 26m/min.
The software is compatible with various CAD/CAM design and production software such as Type3/Artcam/castmate/Wentai.
Weihong control system, capable of fast and smooth 3D machining.
Provide technical and operational training on equipment, as well as consultation on after-sales maintenance





Product parameter

Model	Cnc Wood Router 1300*2500mm
Table	T-slot Vacuum table
Table size	1300*2500*200mm
Transmitting way	X,Y axis transmitting by gear and rack,Z axis transmitting by rolling ball screw
Spindle motor	leadshine stepper motor
Spindle motor speed	0~24000rpm/min
Driver system	Stepper (optional Servo Motor )
Control system	Ncsutido Control System(optional DSP or Mach3)
Limit stop	Omron etromic
Inverter	Folinn inverter
Working votage	AC220V/380V,50/60Hz
Optional	Dust collector, Servo system,Oil spray system



Different spindles can be selected according to the different processing materials for the 1325 CNC router cut wood
Soft materials: such as wood, plastic, etc., can choose spindle motors with lower power, such as air-cooled spindles ranging from 2.2kW to 3kW, paired with stepper motors to meet basic needs.
Hard materials: such as stone and metal require high-power water-cooled spindle motors, such as 5.5kW and above, to provide sufficient cutting force.



Product details

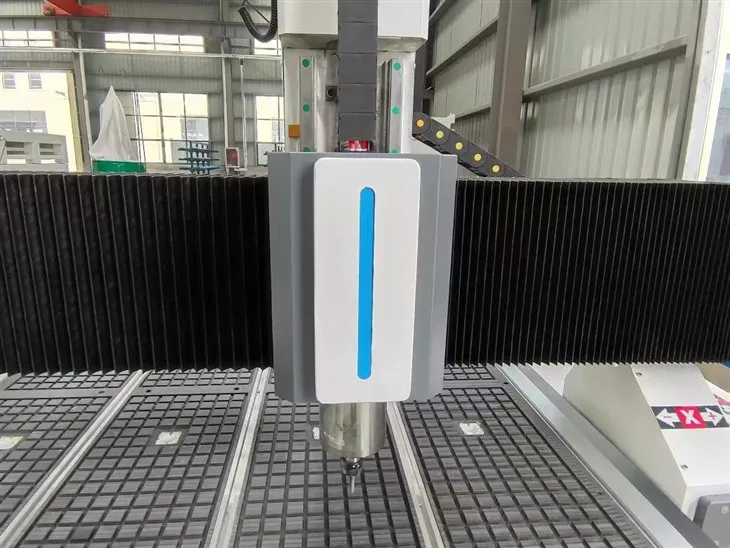

Water cooling spindle

3.2kw water cooled spindle with good cooling effect and long service life.

Vacuum table

Adsorption and fixation effect is good, and no traces left on the material

Sturdy crossbeam

The crossbeam is reinforced with steel plate, increase carving accuracy and service life

Taiwan rails and racks

Taiwan high-precision linear guide and rack ensure the accuracy of the machine

Tool sensor

Improve machining quality and extend tool life

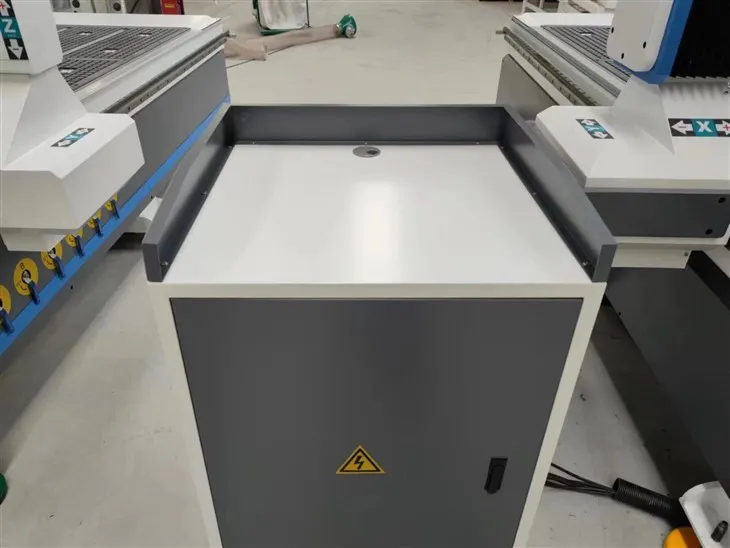

Control cabinet

Weihong controller and Yako driver,Ensure stable operation of the machine



The application range of cnc wood router machine is very wide, which can process various metals, non metals, composite materials, etc., such as aluminum, copper, wood, acrylic, PVC, MDF, etc. It can produce various flat or three-dimensional patterns, texts, logos, molds, handicrafts, etc., widely used in advertising, decoration, furniture, models, industry, education and other fields.



Our factory

Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing CNC router , co2 laser machine,fiber laser cutting machine ,digital cutting machine.After 15 years' hard work, our machines have been exported to more than 80 countries, and we have established regular business relationships with many distributors from many countries.





How to choose a cnc wood router machine?
1. Clarify processing requirements: Select appropriate models and configurations based on factors such as material type, size, precision requirements, and output to be processed.
2. Product quality: Choose a factory that provides more assurance in terms of product quality, stability, and after-sales service.
3. Numerical Control System: An advanced and stable numerical control system is the key to ensuring the performance of the engraving machine, taking into account the system's functionality, compatibility, and ease of use.
4. Motor and Drive System: The torque of the motor and the accuracy of the drive system directly affect the operating speed and precision of the engraving machine, and products with reliable performance should be selected.
5. After sales service: CNC engraving machines are high-tech equipment and may experience malfunctions. Good after-sales service can promptly solve problems and reduce downtime.
