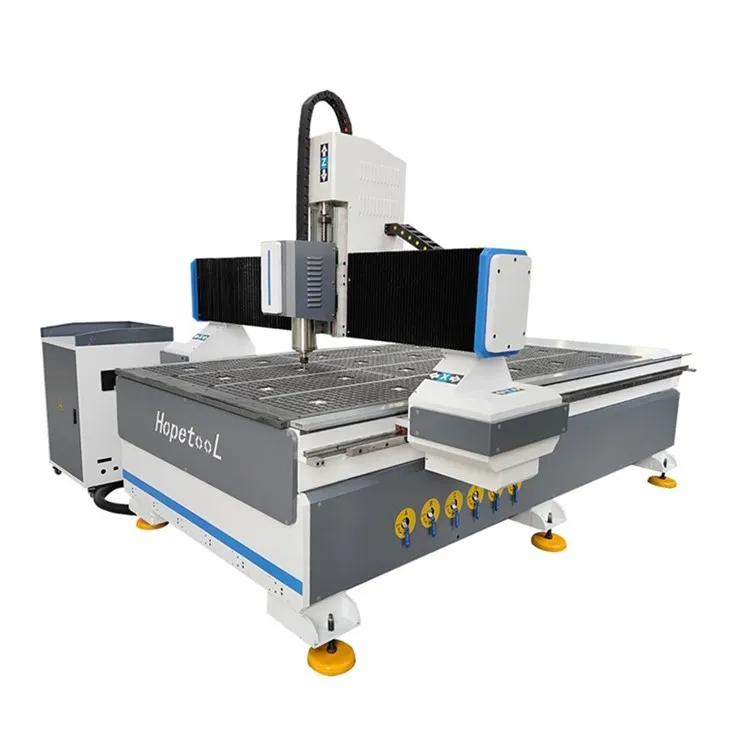

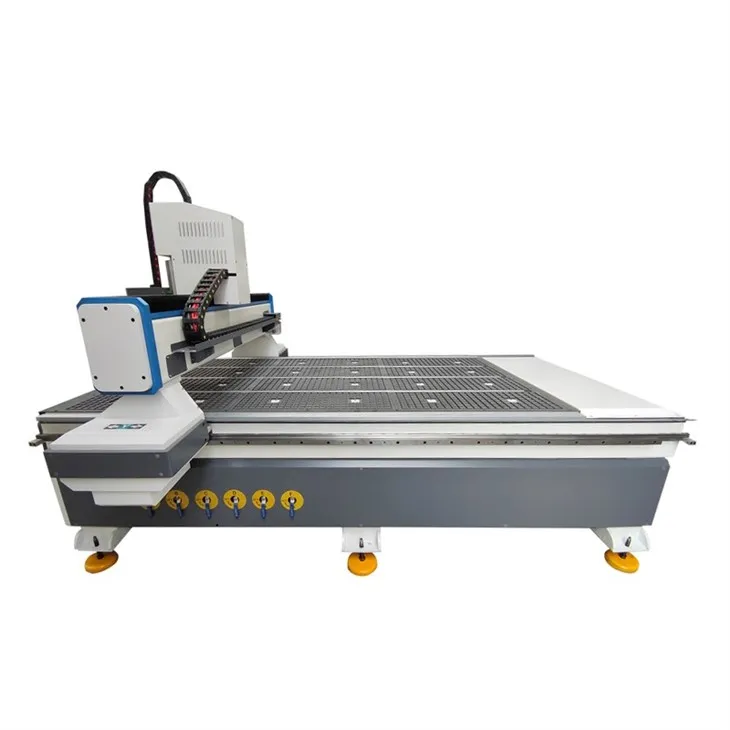

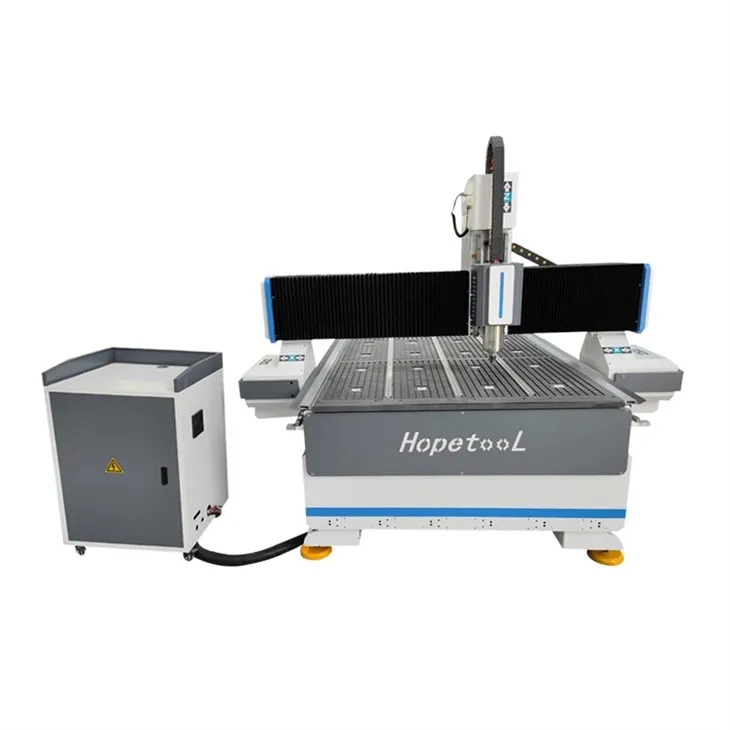

1530 Cnc Router Machine For Wood And MDF
3.5kw air cooling spindle
Vacuum table with T solt
Mach3 system
Folinn Inverter
Products Description
1530 Cnc Router Machine For Wood And MDF is a multifunctional CNC equipment is Water cooling spindle, high precision, long life time, steady working, easy to start up
- The 1530 Cnc Router Machine For Wood And MDF body is strong, rigid, high precision, reliable and durable.
- Adopt imported high-precision rack, which has smooth movement and ensures the high precision of the machine tool.
- High quality Taiwan imported linear guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
- 1530 Cnc Router Machine For Wood And MDF Using well known domestic brands of water cooling brushless spindle, low noise, and strong cutting ability, to ensure the long time working.
- 1530 Cnc Engraving Machine For Wood uesing high performance driven motor to ensure that the machines high speed and accuracy.
- The 1530 Cnc Engraving Machine For Wood DSP A11 control system is a very popular control system with high quality.
- Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
Product Details
Performance parameter
|
Description |
parameter |
|
XYZ working area |
1500*3000*200mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y,Z Repositioning Positioning Accuracy |
±0.03mm |
|
Lathe Structure |
Welded Strucutre |
|
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
|
Z Structure |
Ball Screw, Shaft Linear Bearings |
|
Max.Consume Power |
20KW |
|
Max.Speed |
0-60000mm/min |
|
Max.Working Speed |
0-25000mm/min |
|
Spindle Speed |
0-24000RPM |
|
Working Mode |
Servo system |
|
Working Voltage |
AC380V/50/60Hz , 3PH |
|
Control System |
DSP System |
|
Interface |
Internet line |
|
Flash Memory |
512M |
|
Collet |
ER32 |
|
X,Y Working Delicacy |
<0.01mm |
|
Software |
Type3 software, Wentai software,Artcam software |
|
Running circumstance |
Temperature: 0°C~45°C, |
|
Packing Size |
3100x2300x1900 mm |
| Net Weight | 1200KG |
|
Gross Weight |
1500KG |
Working Samples
Success Case
- This 1530 Cnc Engraving Machine For Wood is widely used in furniture processing industry, home decoration, wood working decoration, doors manufacturing,wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.
- Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
Producing Process
JiNan Hopetool CNC equipment Co.ltd.
Design machine
Milling bed
Assembling
Inspecting Testing
Packing,Shipping
Traning and after service
Our Certificates
Customer feedback
- You will get higher quality products from us.
- You will get professional and efficient service.
- We will deliver the products as soon as possible.
- We accept customized requirements.
- We provide you with 24-hour service phone, Skype or WhatsApp.
- Our engineers can also come to your door for installation or training.
- When you come to China, we will provide you with free training until you can use the machine skillfully. If you are busy, we will send a dedicated engineer to your country.
Hot Tags: 1530 cnc router machine for wood and mdf, China 1530 cnc router machine for wood and mdf manufacturers, suppliers, factory, 3 axis wood cnc machine, 4 axis cnc wood router, cnc brass engraving, computer wood carving machine, desktop wood cnc machine, routing aluminum with wood router
