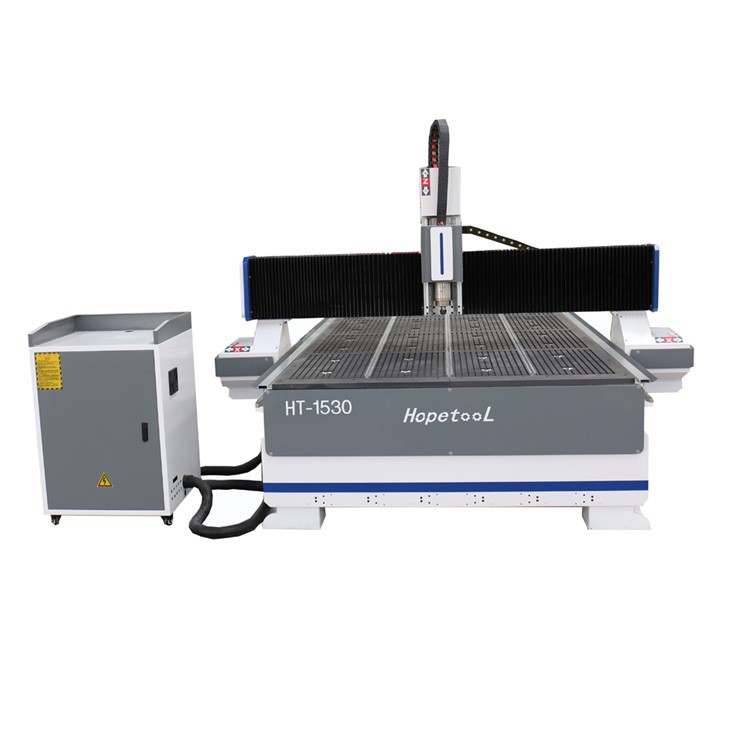

Cnc Router 1530
* Table surface：Aluminium T slot table
* Spindle power: 3.2/5.5KW
* Max working speed: 25m/min
* Work mode: stepper(optional servo)
* Working voltage: AC220/380V
* Operating system: DSP/Ncstudio/Mach3 control system
Cnc Router 1530 machine Characteristic：
The vacuum table feature ensures that your material is held securely in place during the cutting process, preventing any errors or accidents.

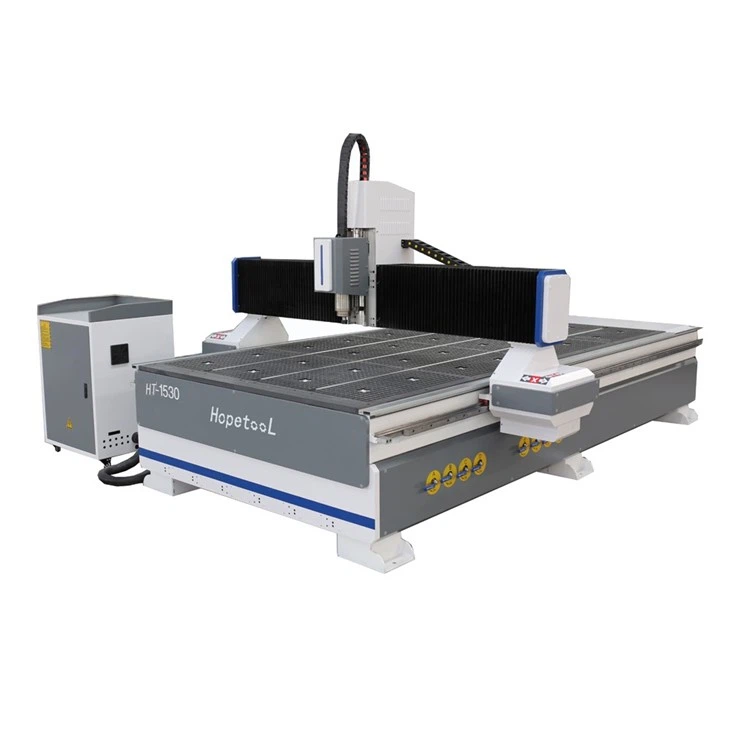

Moreover, the dust collector feature helps keep your work area clean, dust-free, and healthy. The Cnc Router With Dust Collector Vacuum 1530 is designed to suction away all the debris and dust particles generated during cutting, thereby minimizing personal exposure to harmful dust and improving your woodworking efficiency. This Cnc Router With Dust Collector Vacuum 1530 is versatile and can be used for various woodworking projects, including crafting cabinets, tables, chairs, and many more.
Cnc Router 1530 machine, you can easily turn your ideas into reality. The Cnc Router With Dust Collector Vacuum 1530 is both easy to use and produces quality output, ensuring that you can create even the most complex designs and patterns. The machine is also highly durable and can last for many years if properly maintained.
Cnc Router 1530 machine Technical characteristics:
1. Water-cooled spindle, high precision, long life, smooth work, easy to start.
2. Thickened square tube structure, good welding, no deformation of the overall structure, high precision, long service life.
3.DSP controller system adopts USB interface, no need to connect the computer when working, easy to control.
4. Software: type3 / artcam/castmate/weitai CAD/CAM design software
5. Automatic oiling system, easy to operate with one click.
6. Separate control system, easy to operate.
7. Adopt high-speed stepper motor and driver, Y-axis adopts two motors. The maximum speed is 25mm/min.
8. Vacuum table grips the engraving material, and the operation is more reliable and convenient.
Cnc Router 1530 machine Parameter:
|
Number |
Description |
Parameter |
|
1 |
XYZ working area |
1500*3000*200mm |
|
2 |
Table size |
2180*3500mm |
|
3 |
XYZ travel positioning accuracy |
±0.01mm |
|
4 |
XYZ repositioning positioning accury |
±0.02mm |
|
5 |
Table surface |
Aluminium T slot table |
|
6 |
grantry |
steel |
|
7 |
Drive system X-Y axis |
Rack actuation |
|
8 |
Drive system Z axis |
Ball screw |
|
9 |
Spindle power |
3.2/5.5KW |
|
10 |
Max velocity |
50m/min |
|
11 |
Max working speed |
25m/min |
|
12 |
Spindle speed |
0-24000rmp |
|
13 |
work mode |
step(optional servo) |
|
14 |
Working voltage |
AC220/380V |
|
15 |
Command language |
G code |
|
16 |
Interface |
USB |
|
17 |
Operating system |
DSP/Ncstudio/Mach3 |
|
18 |
Flash memory |
128 |
|
19 |
X-Y resolution |
0.025mm |
|
20 |
Software environment |
Wentai type3 artcam |
|
21 |
Running environment |
Temperature:0-45°C |
|
22 |
Paking size |
4000*2150*2200mm |
|
23 |
Net weight |
1300 kg |
|
24 |
Gross weight |
1500 kg |
