Fully Automatic Wood Cnc Router Machine
Fully Automatic Wood Cnc Router Machine

cnc router machine cutter

Automatic loading and unloading woodworking engraving machine is a kind of machine specially designed to enhance production efficiency, it uses modern technology and intelligent control system, with high precision, high speed, high stability and high automation and other advantages, widely used in wooden furniture, decorations, carving crafts and other fields.

Send Inquiry

Product Introduction

Cnc router machine cutter Characteristic:

1) X,Y axises adopt gear-wheel, speed is fast. The Fully Automatic Wood Cnc Router Machine adopts domestic no oil vaccum pump
with high efficiency.
2)Adopt yako servo motor ,built-in encoder, Fully Automatic Wood Cnc Router Machine can stop automatically when graunch happens,so can avoid accidents .
3)Whole Fully automatic wood cnc router machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel
structure
4)All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high
precision.

5).With 4 cylinder and 2 Pressure wheel for fix the material.

cnc router wood cutting machine

Details Images：


5.5 KW or 7.5 KW spindle can rotate 180 degree.	Saw with diameter 400mm, cutting speed fast.

With two pressure wheel,can fix the material very tight when cutting.	With four cylinder for fix the sheet material .

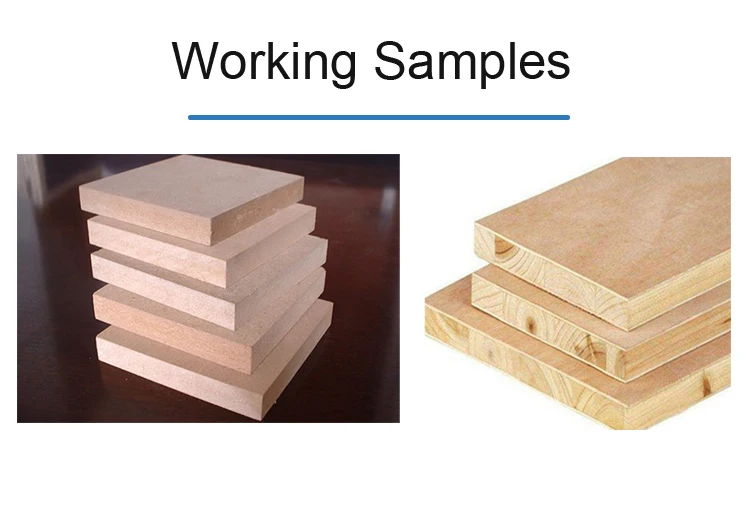

Working Samples:

wood cutting

Cnc router machine cutter Performance parameter:

Description	parameter
XYZ working area	13002500200mm	15003000200mm	20003000200mm
Table size	1440X3040mm	1640*3540mm	2140*3540mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Positioning Accuracy	±0.02mm
Lathe Structure	Welded Strucutre
X, Y Structure	Gear Wheel Transmission, Shaft Linear Bearings
Z Structure	Ball Screw, Shaft Linear Bearings
Max.Consume Power	20KW
Max.Speed	0-60000mm/min
Max.Working Speed	0-25000mm/min
Spindle Power Motor	5.5 or 7.5Kw spindle
Spindle Speed	0-24000RPM
Working Mode	Servo system
Working Voltage	AC380V/50/60Hz , 3PH
Command	G Code, uoo, mmg, *plt
Operating System	SYNTEC or Weihong System
Interface	Internet line
Flash Memory	512M
Collet	ER32
X,Y Working Delicacy	<0.01mm
Software	Type3 software, Wentai software,Artcam software
Running circumstance	Temperature: 0°C~45°C, Relative humidity: 30%~75%
Packing Size	4000x2150x2200 mm
Net Weight	2000KG
Gross Weight	2300KG
