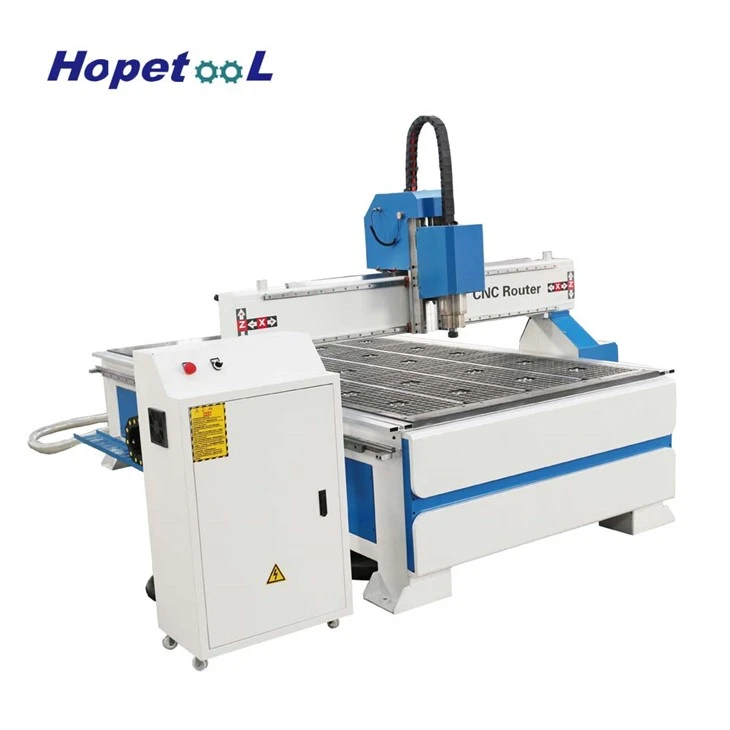

woodworking cnc engraving and cutting machine
▶Steel tube welded frame
▶Gear and rack transmission
▶Hiwin Square rail for three axis
▶Ncstudio control system(Computer)
▶Stpper motor and driver
▶3.2 KW water cooling spindle
▶Vacuum table( 5.5KW air pump)
|
|
|
Characteristic:
|
|
|
|
The machine lathe bed Adopting thick square tube structure, multiple quenching treatments, increased lathe hardness and accuracy |
The 3.2KW water cooled spindle Woodworking cnc engraving and cutting machine with high-performance water-cooled spindle motor for fast cutting and engraving |
|
|
|
|
DSP or Mach3 or Weihong control system Simple system operation and good price |
Hybrid servo motor Hybrid servo motors have higher progress and speed than stepper motors |
|
|
|
BEST inverter |
Leashine driver |
|
|
|
Vacuum table with T-SLOTThe six zone vacuum adsorption table can effectively adsorb plates of different sizes, improving processing efficiency |
Helical Rack and gear for X,Y axis
|
Woodworking cnc engraving and cutting machine can be customized and be changed. The system offers options such as Ncstudio system, DSP, Syntec system, and Mach3. Spindles available for selection include HQD and HSD. You can customize according to the materials and requirements you want to process.
Technical parameter
|
Description
|
Parameter
|
||
|
XYZ working area
|
1300*2500*200mm
|
1500*3000*200mm
|
2000*3000*200mm
|
|
Table size
|
1310*3000mm
|
1510*3500mm
|
2010*3500mm
|
|
XYZ travel positioning accuracy
|
±0.01mm
|
||
|
XYZ repositioning
positioning accury
|
±0.02mm
|
||
|
Table surface
|
Bakelite sheet
|
||
|
Grantry
|
Steel
|
||
|
Drive system X-Y axis
|
Rack actuation
|
||
|
Drive system Z axis
|
Ball screw
|
||
|
Spindle power
|
3.2/5.5KW
|
||
|
Max velocity
|
50m/min
|
||
|
Max working speed
|
25m/min
|
||
|
Spindle speed
|
0-24000rmp
|
||
|
Work mode
|
Step(optional servo)
|
||
|
Working voltage
|
AC220V/380V
|
||
|
Command language
|
G code
|
||
|
Interface
|
USB or parallel port
|
||
|
Operating system
|
Ncstudio/DSP/Mach3
|
||
|
Flash memory
|
128
|
||
|
X-Y resolution
|
0.025mm
|
||
|
Software environment
|
Wentai type3 artcam
|
||
|
Running environment
|
Temperature:0-45°C
|
||
|
Paking size
|
3300*1900*1900mm
|
||
|
Net weight
|
1000 kg
|
||
|
Gross weight
|
1200 kg
|
||
Woodworking cnc engraving and cutting machine Industry:
Woodworking industry: solid wave board, cabinet doors, craft wooden doors, medium density fiberboard, etc.
Advertising industry: billboards, acrylic, PVC, PP, PT, epoxy board, PCB, etc.
After Sales Service:
1. Online after-sales consultation: inquire about the use, maintenance, and upkeep of the product.
2. Online after-sales technical support: Provide technical support related to product usage.
3. Online after-sales maintenance guidance: Provide customers with after-sales maintenance services for products, including replacement of spare parts, repairs, etc.
4. Online training: Provide customers with training on the use of the product, enabling them to better understand its features
Characteristics and usage methods.
5. After sales complaint handling: Provide customers with a complaint handling mechanism, timely understand and handle customer complaints, and ensure
Verify customer satisfaction.
