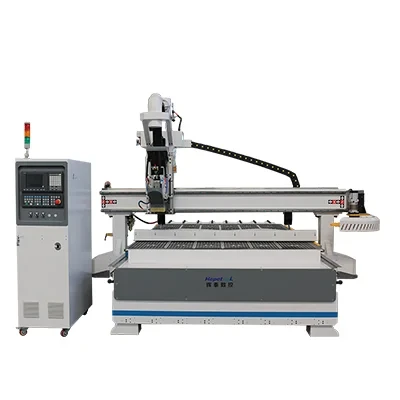

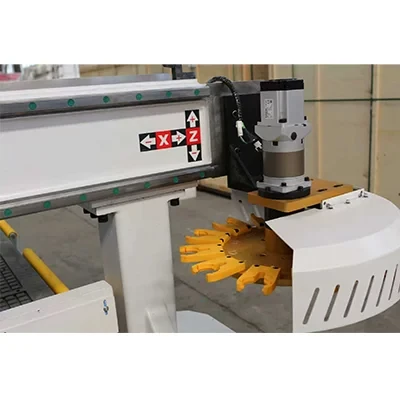

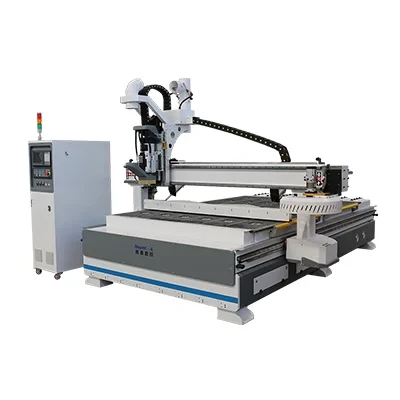

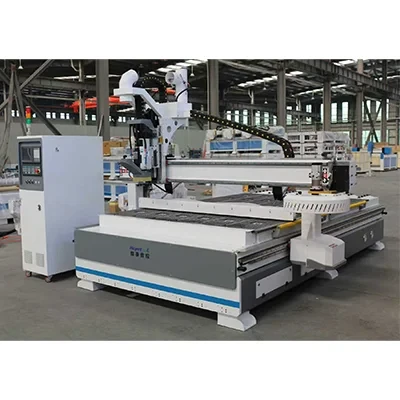

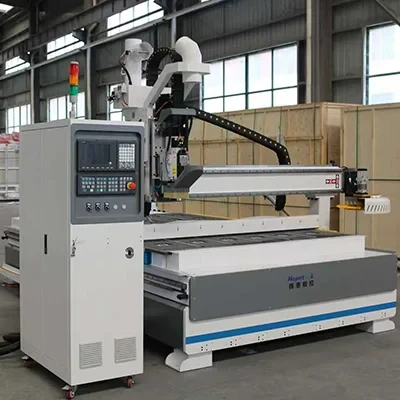

2030 Disc Tool Change CNC Router

Main features
1. 2030 Disc tool change cnc router has 9KW air cooled spindle, speed 0-24000rpm, Place tools on the spindle to mill, carve, and drill materials.

2. Taiwan LNC control system, easy to operate.Support intelligent file checking function.

3.The X-Y-Z axis adapt HIWIN guide rail ,High-quality guide rails and racks can improve the 2030 Disc tool change cnc router machine working speed and stability .

4.Lubrication system, maintenance free, easy to operate.

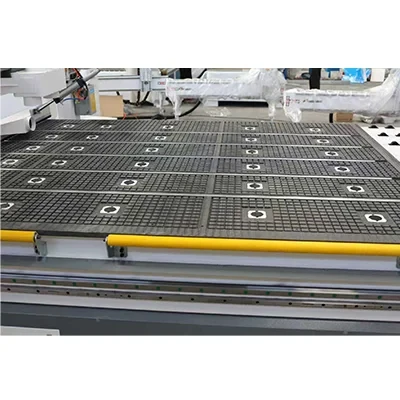

5.Vacuum table ,Independent control of each partition ,easy to fix materials of different sizes.

6.2030 Disc tool change cnc router use Yako servo motor 1.5kW

Specification parameters

Discription	Parameter
1	X,Y,Z Working Area	2000*3000*300mm
2	Table Size	2440*3340mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Positioning Accuracy	±0.02mm
5	Lathe Structure	Welded Strucutre
6	X, Y Structure	Gear Wheel Transmission, Shaft Linear Bearings
7	Z Structure	Ball Screw, Shaft Linear Bearings
8	Max.Consume power	20KW
9	Max.Speed	0-60000mm/min
10	Max.Working Speed	0-25000mm/min
11	Spindle Power Motor	9KW air cooling Spindle ATC
12	Spindle Speed	0-24000RPM
13	Working Mode	Servo system
14	Working Voltage	AC 220V/380V/50/60Hz , 3PH
15	Command	G Code, *uoo, *mmg, *plt
16	Operating System	Weihong or SYNTEC System
17	Interface	Internet line
18	Flash Memory	512M
19	Collet	ER32
20	X,Y Working Delicacy	<0.01mm
21	Software	Type3 software, Wentai software,Artcam software
22	Running circumstance	Temperature: 0℃～45℃, Relative humidity: 30%～75%



Our customers give us very good feedback, our after-sales service and product quality are very good, this is just part of our feedback display. Please believe us, we are a professional manufacturer and seller CNC router.



FAQ

Q: Training and use of the product?
A: We can provide online training, including how to use the product and precautions.
Q: How about warranty and after-sales service?
A: Two-year warranty for the whole machine, 1 year for wearing parts.
Q: Payment terms?
A: T/T, LC and Alibaba Trade Assurance payment methods are acceptable. Other payment methods are negotiated according to the cooperation time.
Q: Delivery time?
A: Regular products take 7-15 days, customized products take 15-30 days, which needs to be negotiated.
Q: Accept OEM/ODM?
A: Yes. We provide ODM/OEM.
